Company Profile
Established in 2019, our company is a registered Ecozone Enterprise specializing in the assembly and manufacture of advanced laser equipment for marking, engraving, and cutting. We offer a diverse range of products, from entry-level CNC machines to industrial-grade plasma cutters and versatile cutting tables. Our machines are designed to produce precise, weld-ready parts that are not only ideal for immediate use but can also be repurposed in the production of additional machinery. Committed to excellence and sustainability, we strive to deliver innovative solutions that meet the highest standards of quality and performance..

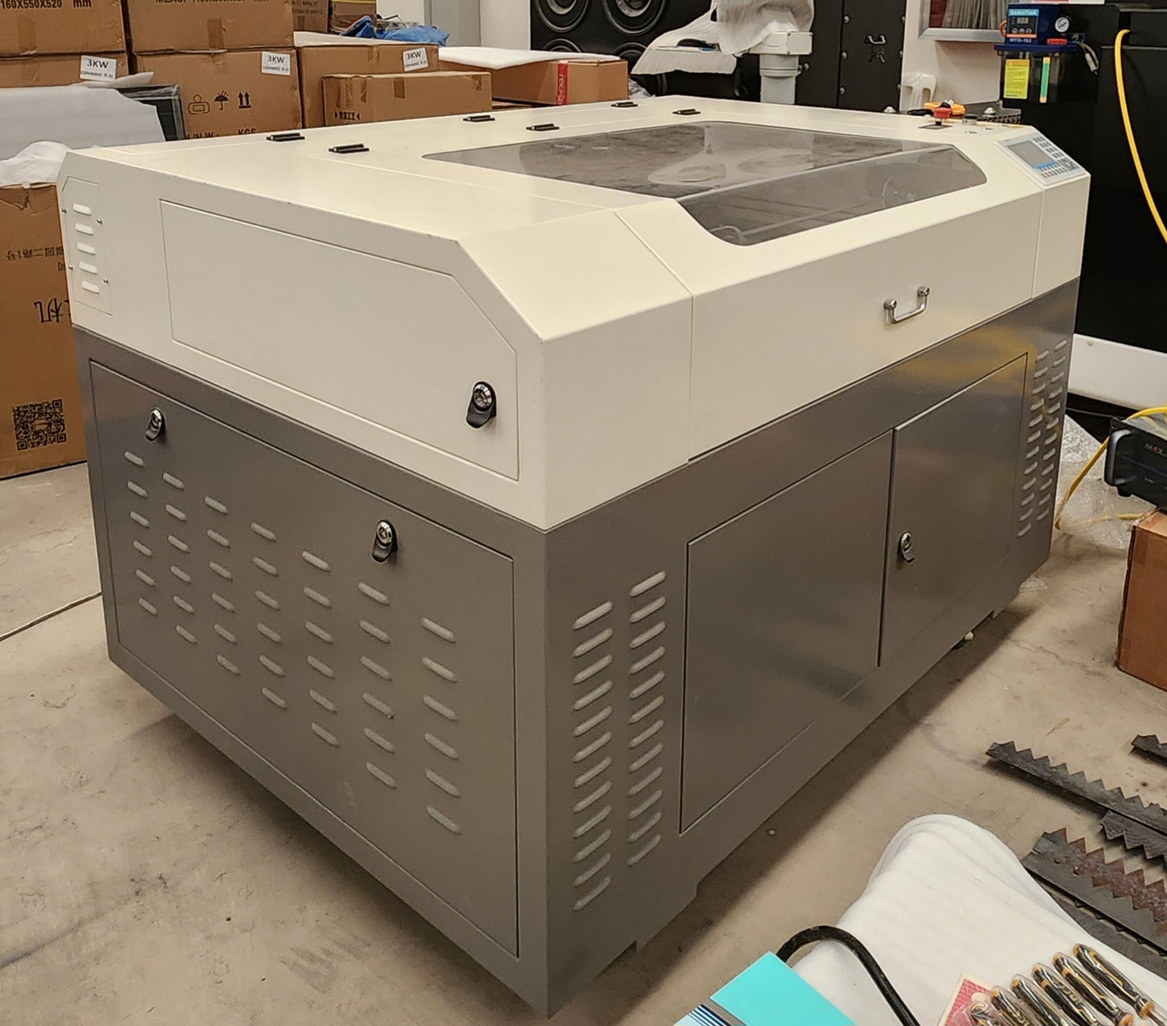

CO2 Laser
- 12000X900mm working area/ 80watts
- Reci Co2 Laser tube
- Taiwan PMI Square rail, Japan ONK 3M Belt
- Blade table and honeycomb table
- Up and down table
- Leadshine stepper motor and driver
- USA II-VI lens and mirrors
- Red dot pointer
- Open protector
- Exhaust fan
- S&A water chiller W1 W2 W4 with CW5000/W6 W8
- Air pump
- Ruida 6445 control system and software
- Tool box
- Power cable, User Manual, Software CD
- Packing size: 1970*1680*1250mm

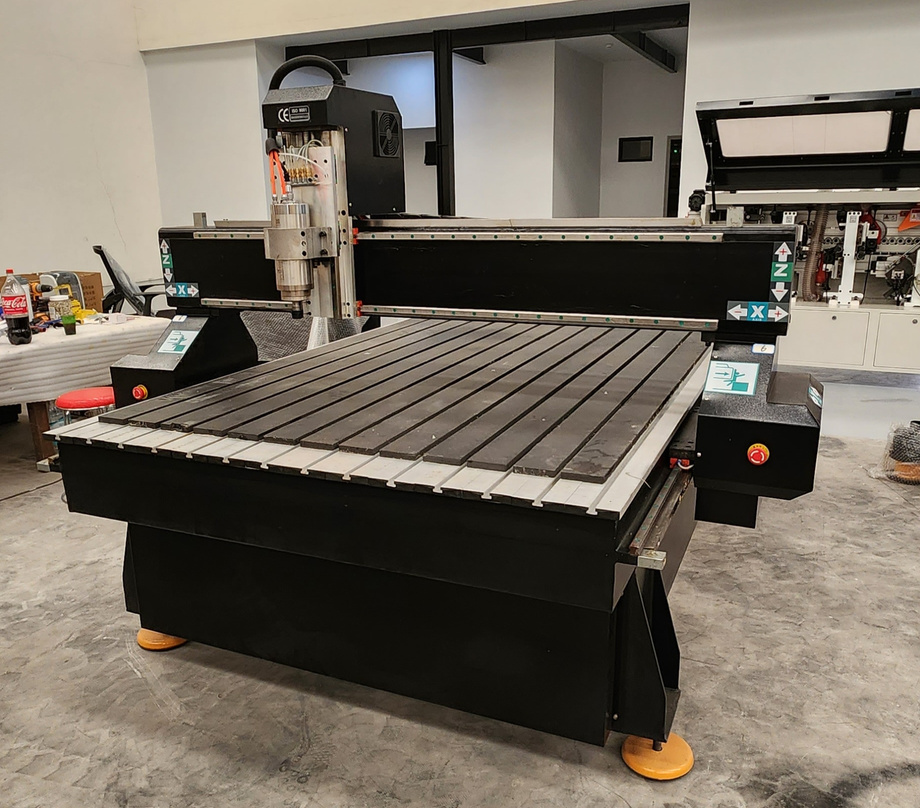

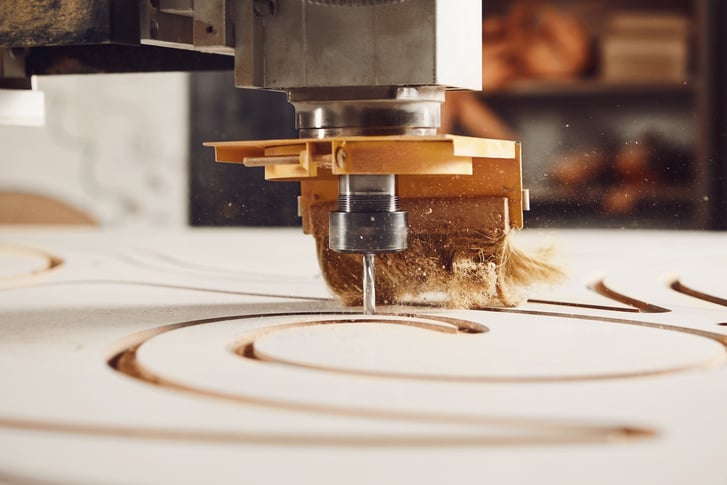

CNC Router
- Working area: 4X8 machine
- 3.0 kw water cooling spindle
- 20mm linear square rail
- X Y axis gear transmission
- Z axis Taiwan TBI ballscrew transmission
- 3 axis MACH3 controller with USB port
- 450B stepper motor (NEMA34)
- Fuling inverter, Leadshine M860 driver
- T-slot table with clips
- 220V 60Hz Single Phase; 20Amps
- Available collet Size: 3,4,6,12mm

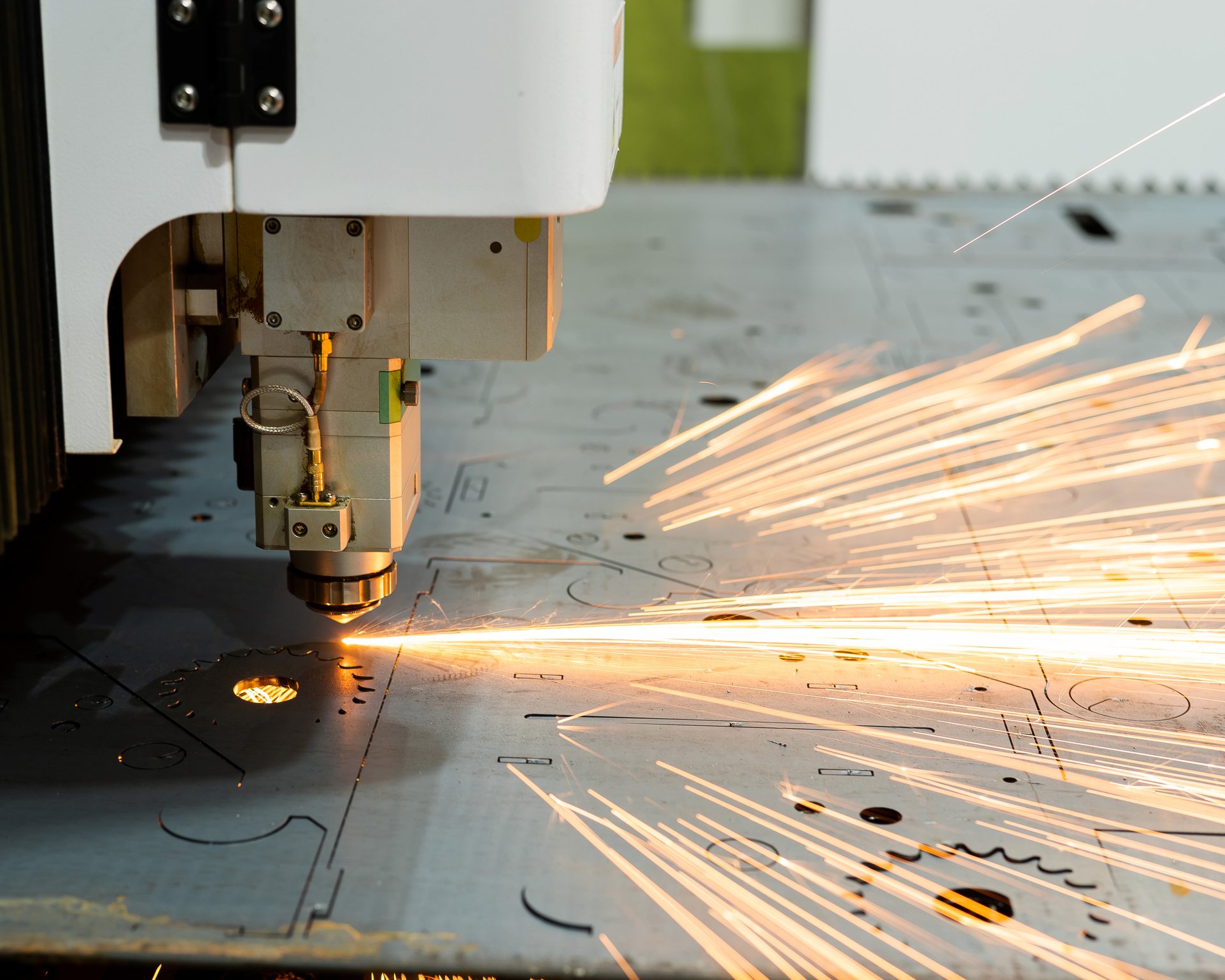

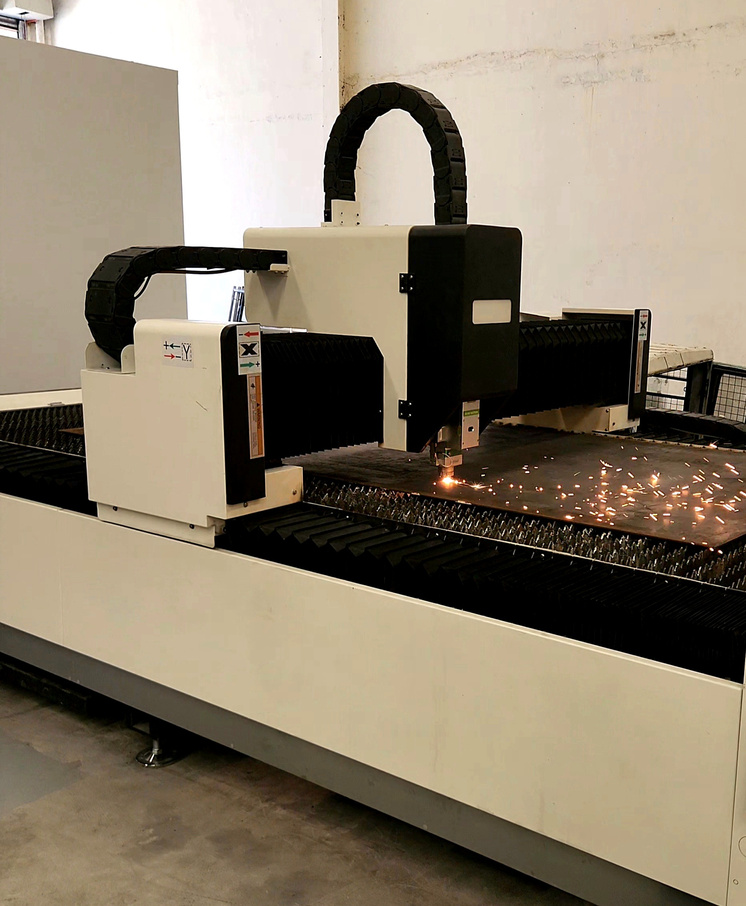

Fiber Laser
- 1.5KW Max
- Fiber Laser Source: Raycus
- Heavy Model with Heat-treatment
- Aviation Aluminum
- Au3tech A200M (Auto focus) head
- Leadshine servo double Y 750W, Z 400W
- Japan Shimpo
- Au3tech system
- Taiwan Hiwin 20mm rails
- Taiwan YYC 1.5mm Racks
- S&A CWFL-1500 water Chiller
- Schneider Electric
- Dual-drive, precise rack and pinion
- Open model
- 1.5T

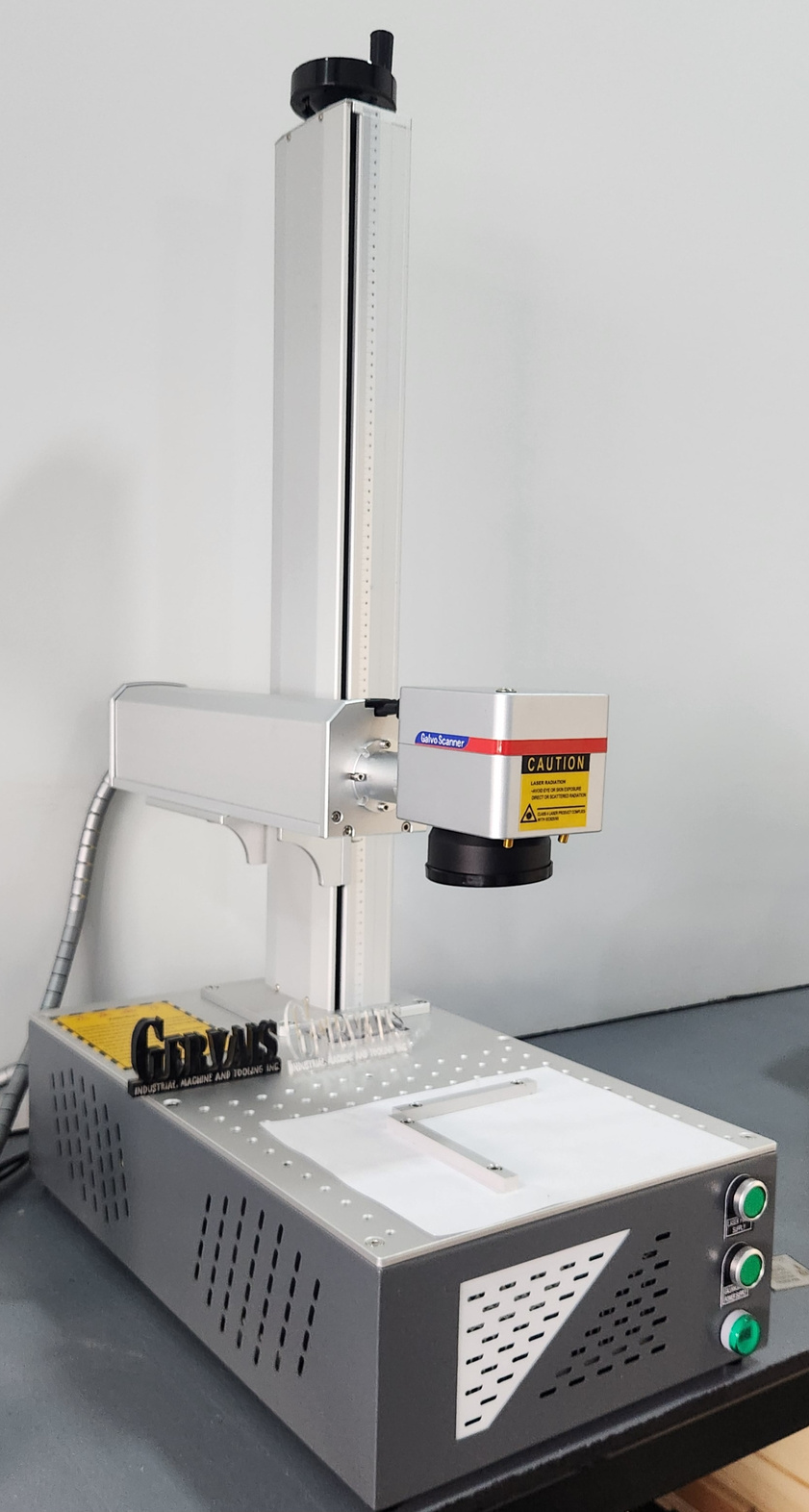

Fiber Marker
- Machine Dimension: 570mmx380mmx1060mm
- Laser Power: 50 watts, No Laptop Included
- Galvo Head: Sino RC1001
- Controller: BJJCZ FBLI-B-LV4
- Software: EZCAD 2.14.16
- Lens: Wavelength F-theta lens, F=160mm, range: 110mmx110mm
- Tower Range: 800mm
- Power Supply: Taiwan Meanwell LRS-350-24
- Frequency Range: 50Hz-100Hz
- Max Speed: 4000mm/s ; Minimum line width: 0.01mm
- Repositioning precision: 0.003mm
- Minimum height of characters: 0.2mm
- 1Voltage: 220v, 50Hz/60Hz

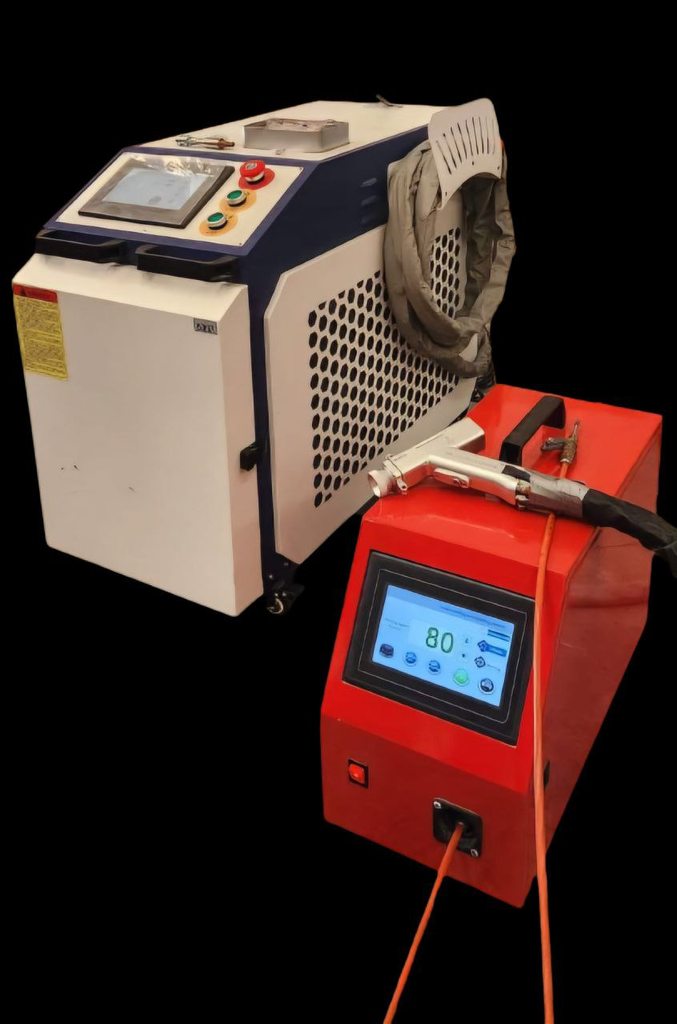

Multi-Purpose
Welding Machine
- Model: GW H1500
- Raycus RFL-C1500 1500w
- Raytools
- Raytools 4 in 1 System (welding, cleaner, cutter, gap cleaning)
- Hanli-1500
- Red Pointer
- Wire Feeder
- Welding Range (thickness) ≤ 6mm stainless and mild steel
- Welding fusion depth ≤ 3mm
- Power consumption ≤7.5kw

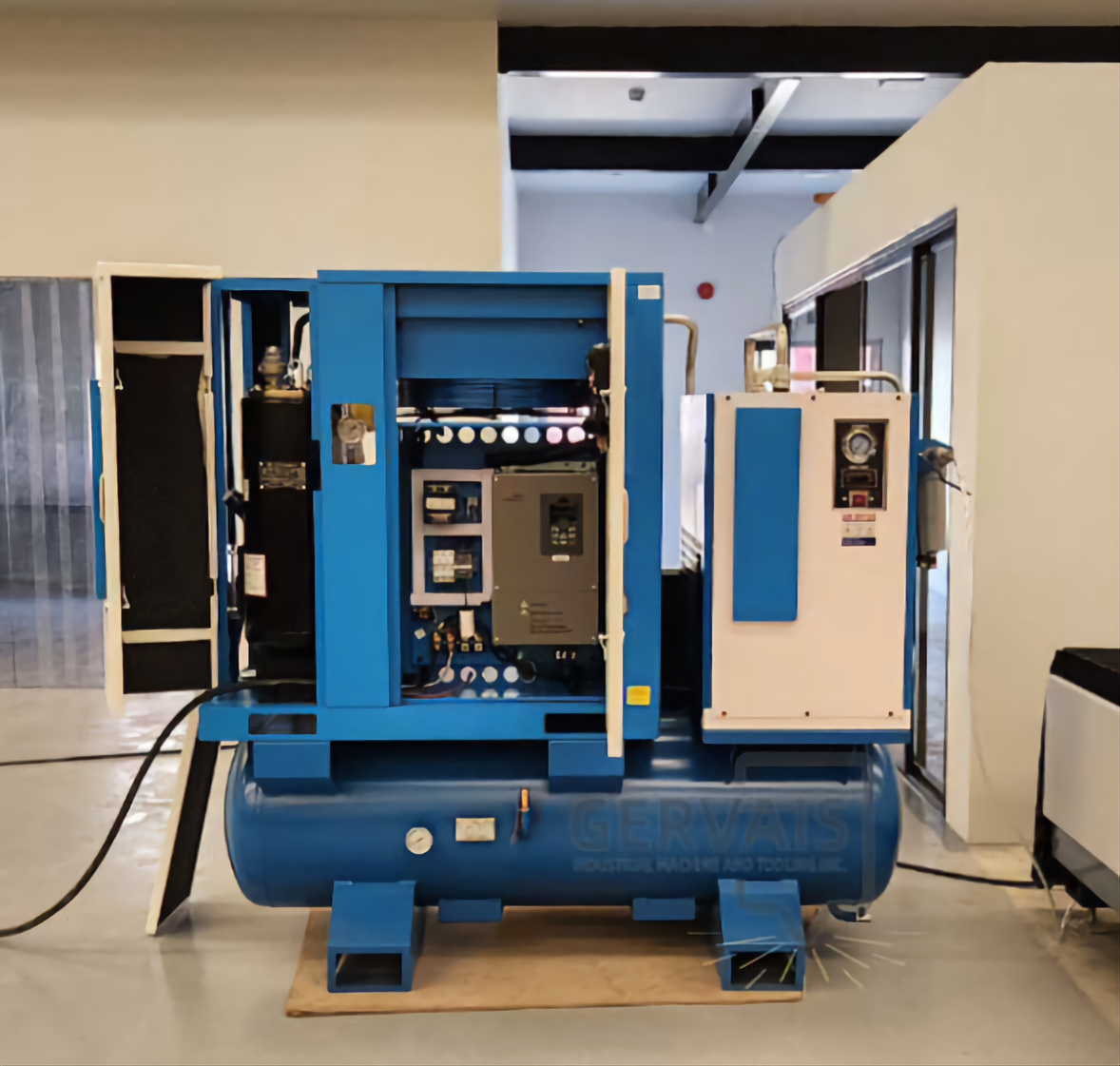

Air Compressor
- Power: 22KW
- Flow: 2.2m3/min
- Air Pressure: Max 16Bar
- Cooling Type: Air Cooling
- Model: Screw Type
- Noise: 65±2db
- Filter level: 0.0lum
- Voltage: 220V, 60hz, Single Phase
- Air Storage Tank: 350L
- Tank Max Working pressure: 1.58Mpa
- Air Tank Size: 500*1760mm
- Exhaust Hose Diameter: DN25
- Dimension: 1800x730x1640mm
- Weight: 397KG
- Inverter Included
Why should you choose us
From our early days, we've been dedicated to providing reliable service to our clients, consistently delivering quality and value. Our commitment to excellence has fostered long-lasting relationships and trust, setting us apart as a dependable partner in achieving your goals.
Good Quality Machines
After Sales Support
Better Customer Service
Mailing Address

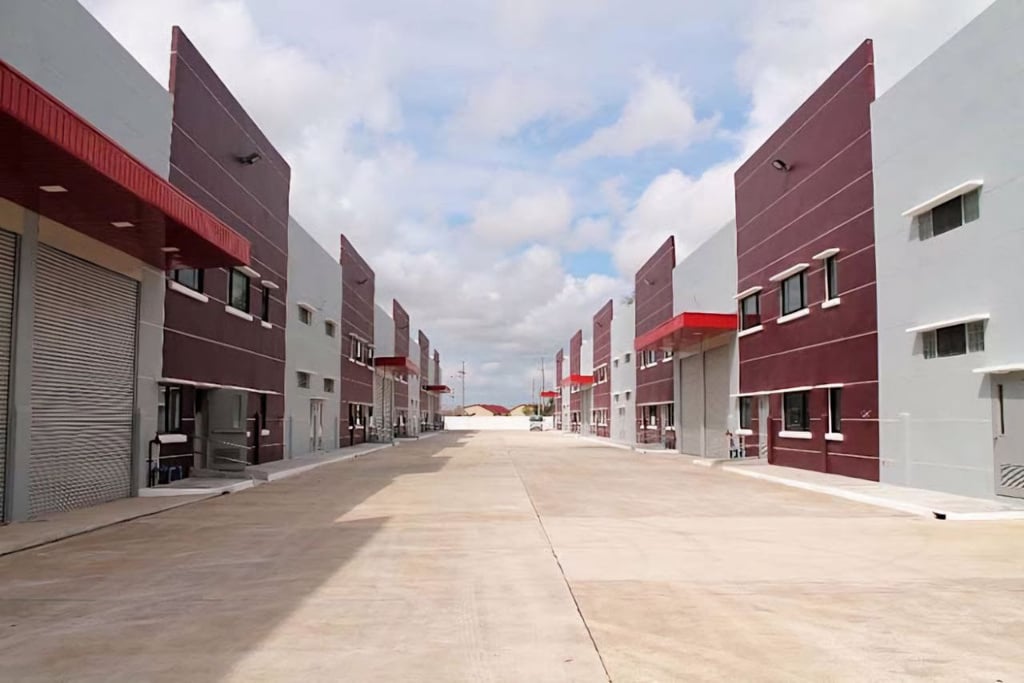

Unit 12 Cavite Technopark SFB 1, Barangay Sabang, Naic Cavite, 4110 Philippines
Phone Number
+639945449289 / +639945449293
Email Address
gimti.sales@gmail.com
Gervais Industrial Machine and Tooling Inc.
